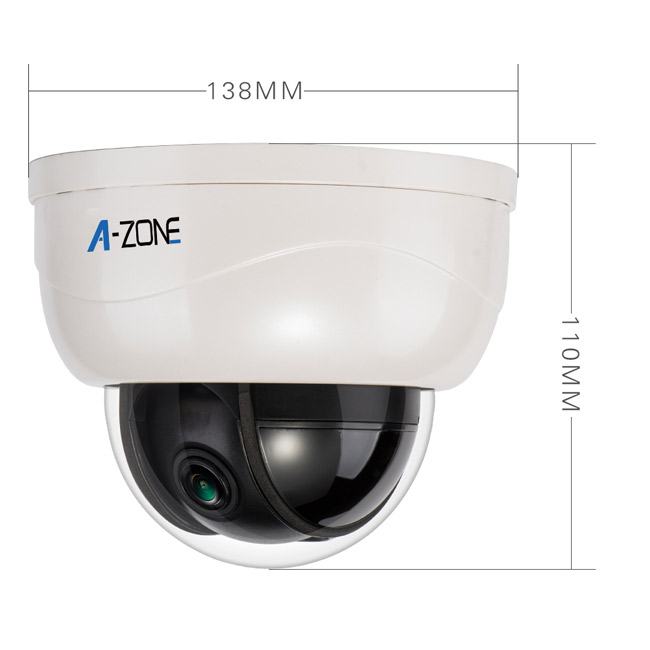

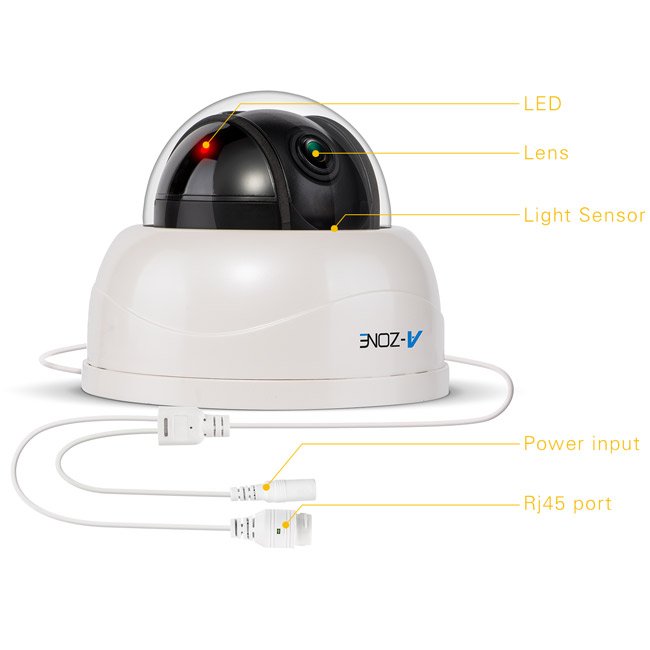

1080P Hd IP PTZ Speed Dome Camera Aluminum Alloy 18x Optical Zoom
feature:
1. Image Sensor:1/2.5" Prongressive Scan CMOS
2. Optical Zoom:18X,auto focus
3. Signal system:PAL/NTSC
4. Preset Speed:Horizontal 40°/S; Vertical 20°/S
5. Image Size:1920*1080
6. waterproof level IP 66
7. Web Service:Built-in Webserver Support IE
8. Weight:6.0Kg
application:
Widely used in banks, supermarkets, telecommunications, government, schools, airports, factories, hotels, restaurants, bus / train station, public squares, buildings, shopping malls, offices, residential and other areas that need high-definition video surveillance.
our services:
1. Customer-facing services.
2. Support small orders.
3. OEM & ODM acceptance.
4. Fast delivery.
5. Quality inspection and logistics arrangements.
6. High quality products and competitive prices
| Camera Parameter |
CPU |
TI 368 |
| |
Image Sensor |
1/2.5" Prongressive Scan CMOS |
| |
Effective Pixel |
2Mega Pixel(1920X1080) |
| |
Signal system |
PAL/NTSC |
| |
Horizontal Resolution |
≥1000 TV lines |
| |
Video Format |
25 fps/1920*1080; 25fps/640*480;25fps@288*192 |
| |
Min. illumination |
0.5 Lux/F1.6(color);0.09 Lux/1.6(black & white);IR mode: OLux |
| |
Optical Zoom |
18X,auto focus |
| |
Focus Length |
4.5 ~85mm |
| |
Visual Angle |
55.4°~2.9° |
| |
Day & Night mode |
Auto IR-CUT |
| PTZ Parameter |
Rotation Speed |
Horizontal 0.1°~40°/S;Vertical 0.1°-20°/S |
| |
Preset Speed |
Horizontal 40°/S; Vertical 20°/S |
| |
Rotation Range |
Horizontal 0°~360° unlimited rotation; Vertical 0°~90° auto 180° reversal |
| |
A-B two points scan |
Random setting |
| |
A-B two points scan speed |
Fast speed/Middle speed/Low speed, speed adjustable |
| |
Cruise No. |
8 groups(8 presets each group) |
| |
Presets |
128 |
| |
Alarm Input |
1ch |
| |
Alarm Output |
1ch |
| |
Power Memory |
Support |
| |
Guard Position |
Support |
| IR light |
IR lights No. |
F22 18pcs Array LED Lights,Effective distance up to 200m |
| |
Auto Control IR light |
Auto IR-cut as per camera’s focus |
| Video |
Video Compression Format |
H .264.; MPEG4 |
| Audio |
Video Stream |
Main Stream:1080P,Sub-stream:D1,CIF |
| Alarm |
Image Size |
1920*1080 |
| |
Audio Baud Rate |
64K bps |
| |
Voice Intercom |
Support |
| |
Alarm |
1ch input,1ch output(optional) |
Product Tags:
|
|
1080P Hd IR IP PTZ Speed Dome Camera 18x Optical Zoom 2 Mega Pixel Images
|
